Dental X-Ray Ceiling Type, High Precision

The Belmont PHOT-XIIS 505 is a ceiling-mounted dental X-ray unit engineered for high-precision intraoral imaging. Its advanced features and ergonomic design make it an essential tool for modern dental practices.

Key Features

• High-Frequency DC X-Ray Generator: Minimizes patient exposure to radiation while delivering superior image quality.
• Adjustable Exposure Settings: Offers selectable tube potential (60-70 kV) and tube current (3-6 mA) to accommodate various diagnostic requirements.
• Ergonomic Design: Lightweight, compact tube head with a zero-drift balance arm ensures precise and stable positioning.

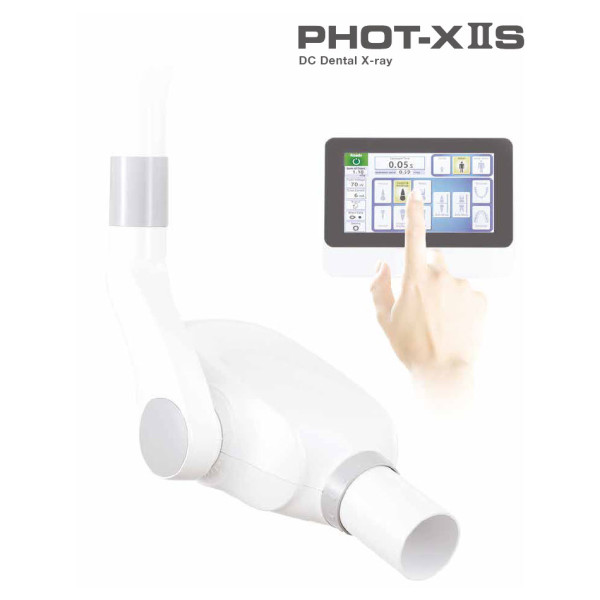

• Intuitive Controls: Features a user-friendly sub-controller with an LCD touchscreen for easy selection of exposure parameters, including patient size, tooth type, and imaging mode.
• Digital and Film Compatibility: Compatible with both digital sensors and traditional film, providing flexibility in imaging modalities.

Technical Specifications

• Tube Voltage: Selectable between 60 kV and 70 kV
• Tube Current: Selectable between 3 mA and 6 mA
• Exposure Time: 0.01 to 2.0 seconds, adjustable in 36 increments
• Focal Spot Size: 0.4 mm for high-resolution imaging

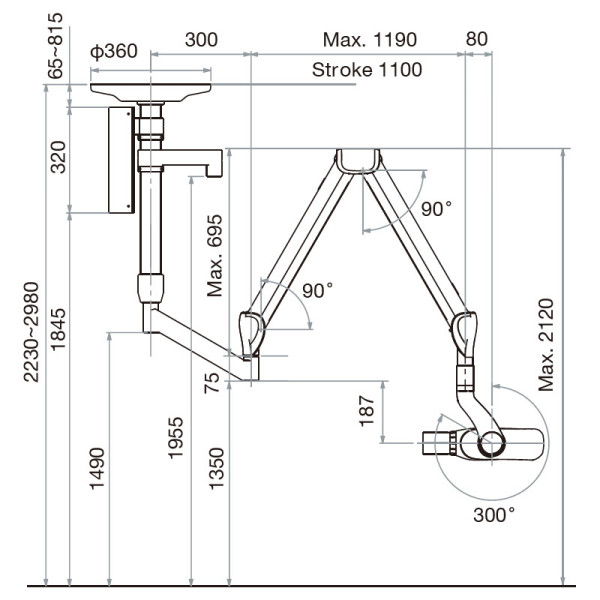

• Arm Length Options: Available in multiple lengths to suit various operatory configurations
• Mounting Options: Ceiling-mounted design for optimal space utilization

Why Choose the Belmont PHOT-XIIS 505?

The PHOT-XIIS 505 combines advanced imaging technology with ergonomic functionality to provide precise and reliable intraoral radiographs. Its customizable exposure settings, intuitive controls, and compatibility with both digital and film systems make it a versatile addition to any dental practice.
